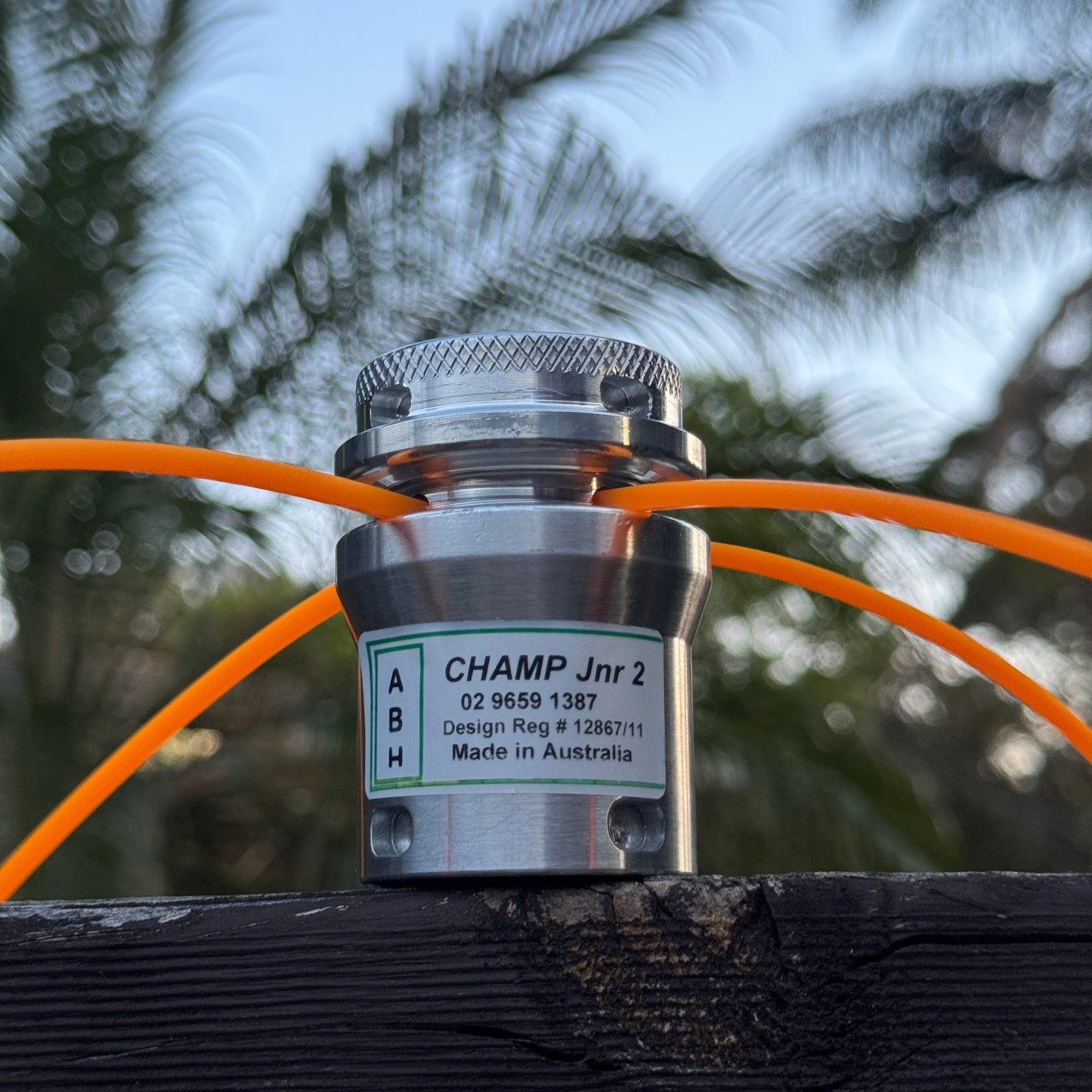

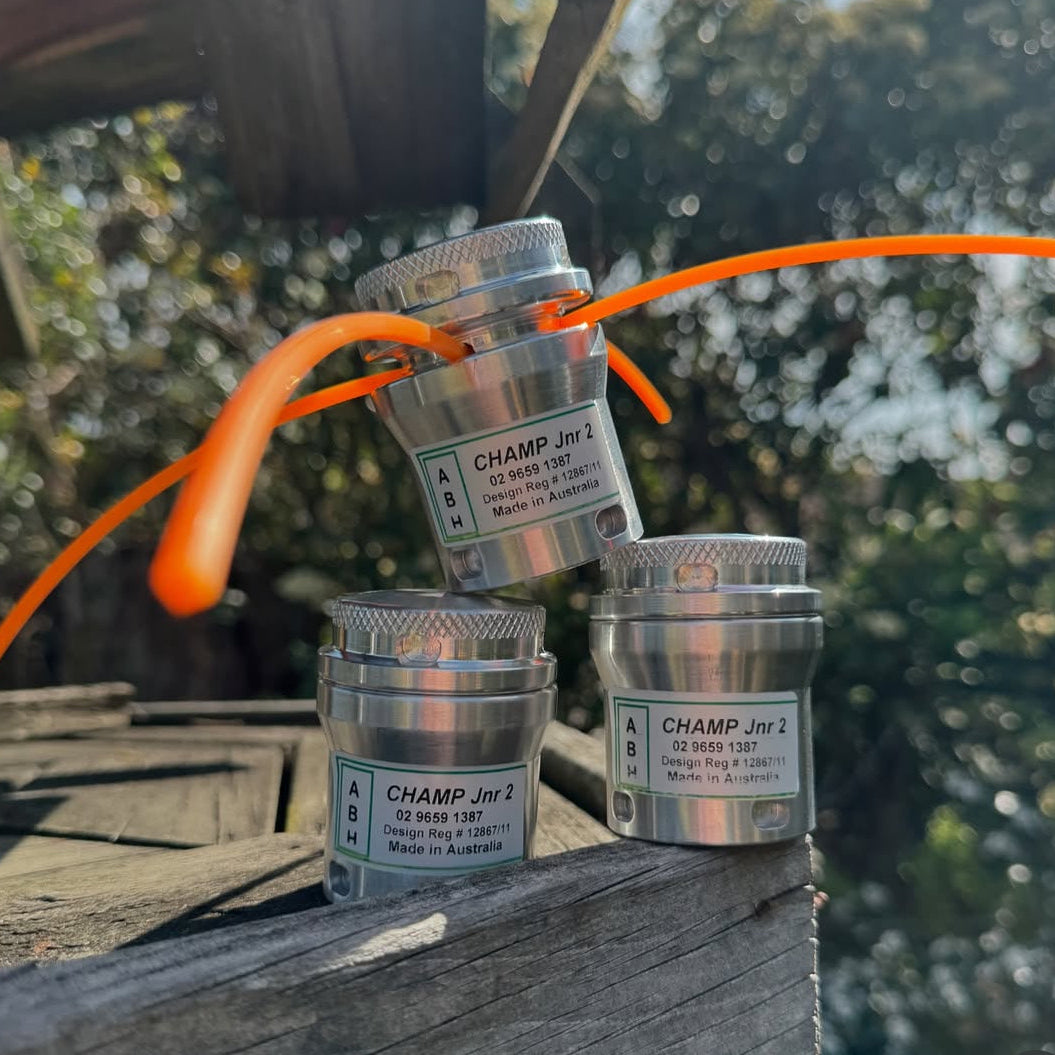

AB1307 CHAMP JNR 2 KIT

Name: AB1307 CHAMP JNR 2 KIT
Brand: My Store
Price: 94.00 AUD
Availability: InStock

$94.00 AUD

Sale Sold out

Shipping calculated at checkout.

HOME USE
PREMIUM Replacement Head for Light Weight Straight Shaft Machines
Incorporates NEW “Box” style thread to better resist heat expansion.
KIT INCLUDES “C” Spanner.

CHAMP JNR 2 HEADS ONLY SUITABLE FOR ELECTRIC TRIMMERS. WE RECOMMEND USING THE 3.0MM LINE.

FEATURES
Amazing performance non-stop cutting for hours!! 100% more line spreads wear & extends cutting time.
ALL METAL 2 piece construction NO moving parts.
Fits ALL “Straight Shaft” Brushcutters - centres on the same “riser” as a Blade.
Base is attached using Original LH Retaining Nut.
Base accepts a 34mm Socket Spanner.
On Machine line Loading & Reloading with our easy to use “Cutting Cylinder Line Loading System”.

SPECIFICATIONS
Weight : 180 gms
Material Marine Grade Aluminium
Base Diameter : Outside 55 mm : Inside 35 mm
Overall Height : 60 mm
Cutting Line : SuperCut Med. 3.0mm Pre-Cut
Cutting Cylinder - 4 Line slots
Components : Base & Cutting Cylinder (wear part)
Spare Parts : Cutting Cylinder & C Spanner
NEW “box / square” thread is “loose fit” to resist heat expansion after extended use
Equipped with 4 c spanner Slots
C spanner provided
DESIGNED & MADE IN AUSTRALIA

View full details

MAKER	ORIGIN	MODEL / CODES	SlEEVE	TYPE	THREADS.
BLACK & DECKER	U.S.A.	BDP385 GB 155 82255 82257 82267		UNF UNF	5/16 x 24 3/8 x 24
BUSHRANGER	AUST	B25	Yes	Metric	8 x 1.25
MITSUBISHI	JAPAN / USA	358-799240		UNF	3/8 x 24
MITSUBISHI	JAPAN/ USA	VS22M20	NO	UNC	5/8 x 11W
ECHO KORITZ	U.S.A. U.S.A U.S.A. JAPAN JAPAN	SRM200E 210AE 210E SRM200 210 2110 GT140 160AE 200BF SRM210AE GT2000 200BE 200CE GT100 140 140A 140B GT2100 GT 2150 GT22GES 2200 2400 GT2010 2102	TYPE 2	UNF UNF UNF UNF Metric Metric	3/8 x 24 3/8 x 24 3/8 x 24 3/8 x 24 10 X 1.25 8 x 1.25
EFCO		8060 8100 8200 STARK 26TR
FLYMO	U.S.A.	FM180 Left Hand Thread 8mm x 1.25	CAN’T	FIT !!
FUJI ROBIN	JAPAN	NB23 236 26 171 NBF 252		Metric	8 x 1.25
GMC	CHINA	LTP 25 (?)	37 X 11	UNF	5/16 x 24
GMC	CHINA	GLT 25	38 X 11	UNC	¼ x 20
GMC	CHINA	GLT 23	None	Metric	8 x 1.25
GREEN MACHINE	U.S.A.	1300 1730 1800 1700 2100		UNC Metric	7/16 x 20 8 x 1.25
HOFFCO	U.S.A.	1600 ALLADIN CRITTER CSA GENIE P22 GR3208 GT160TL P22 PC22 PC224 PC380 GT210 GT211 GT211A GT320B GT320T WH Series WT 160HT WT250C 250HT 250HTA 320HT Little Whiz : Whiz Witch : WW850		UNF UNF UNF UNF UNC	3/8 x 24 3/8 x 24 3/8 x 24 3/8 x 24 7/16 x20
HOMELITE	U.S.A	HLT15 HLT17C HLT18 HLT410 HBC18 HBC306 HBC38 HBC30 UT20713: UT20760 UT20642 HLT2660 HLT25CS F2020 ST160 ST180 ST200 ST210 F 2035	38 X11	UNF UNC UNC UNC UNF UNF	7/16 x 20 ¼ x 20 5/16 x 18 5/16 X 18 3/8 x 24 5/16 x 24
HOMELITE Straight Shaft	JAPAN	UT20769 ( right hand rotation)		Metric	8 x 1.25
HONDA	JAPAN	HLT422 HKT425 ULT 425 UMS 425		Metric	8 x 1.25
HUSQVARNA	U.S.A. U.S.A. EUROPE CHINA	26LC: 26RLC: 265RX: 32LC: 320B: 124C: 125C 122 C 128C LT21H 122 -3 (multi-fit) 323 C Can’t Fit - clip type Head	None None None	UNF UNF	3/8 x 24 3/8 x 24 5/16 x 18 8 x 1.25 3/8 x 24
JOHN DEERE	U.S.A.	21C 82G 83G 85G 100G 110G 200G 220G 210 250 826		UNF Metric	3/8 x 24 10 x 1.25
JONSERED	EUROPE	GT21L GT25L		UNF	5/16 x 24
		GT 30L		UNF	3/8 x 24
KAZZ	JAPAN	V230 TL23 VS22M		Metric	TBA
KAWASAKI	JAPAN	TG18		Metric	8 x 1.25
MAKITA	JAPAN	RBC250 RBC253 RST250		Metric	8 x 1.25
MARUYAMA	JAPAN	BC184C		Metric	8 x 1.25
MORRISON	N.Z.	BC230B	38 X11	Metric	8 x 1.25
McCULLOCH Eager Beaver	U.S.A. & JAPAN	MAC17 MAC25 TM 251 Pro MAC MAC 80 MAC65SLMAC80SL MAC85SL MAC99SL MAC80 MAC210 MAC230 MAC240 MAC320 60 60A 60S 65 70A 80 80A EB1 EB1s EB11 EB11s EB11v EB111 EB111sl EB111sx EB200 EB220 EB240 EB111s 210 Proscraper 1sx Titan 2100 2200 2250 Cabrio245	None	Metric C Metric F UNC BSPF UNF UNF UNF UNF UNF UNF	8 x 1.25 8 x 1.0 ¼ x 20 ¼ x19 3/8 x 24 3/8 x 24 5/16 x 24 3/8 x 24 3/8 x 24 3/8 x 24
M T D	CHINA	LT31C: LT31 + 40mm Nylon Sleeve RYOBI “Yellow Head” Look a Like		Metric	8 x 1.25

MAKE	ORIGIN	MODELS / CODES	SLEEVE	TYPE	SIZE
Oleo-Mac	EUROPE	720 Sparta 26 TR : 725 B : TR-61E (Anti-Clockwise Rotation !!)	CHAMP Jnr	Metric	LH 8 x 1.25
POPE	U.S.A.	101PLT25		Metric	8 x 1.25
POULAN	U.S.A.	2600 2610 2615 2700 559 609 700 800 Pro 0111		UNF	3/8 x 24
RED MAX	JAPAN	BT17 BT200 BT25 SGC220DL		Metric	8 x 1.25

RYOBI (Black Head)	U.S.A.	All Models	38 X 11	UNC	5/16 x 18
RYOBI (Yellow Head)	JAPAN	All Models	30 X 11	Metric	8 x 1.25
RYOBI Electric	U.S.A.& CHINA PRC	ELT1000QF & ELT1000A + Sleeve ELT1100QFA Yellow Head RLT1038X	38 X 11	UNC	5/16 x 18
RYOBI Electric	JAPAN	RLT 1000 XP (Made PRC)	38 X 11	Metric	8 x 1.25
RYOBI Lithium Battery 34 V	JAPAN	RBC3426 e “Straight Shaft” Anti –Clockwise Rotation USE CHAMP Jnr 2 (one Line Only)	NIL	CHAMP Jnr 2
RYOBI Electric	JAPAN	RLT 800QF + sleeve	38 X 11	Metric	8 x 1.25
RYOBI Electric	CHINA	RLT 1000 EX RLT 1038 x	36 x 11 36 x 11	Metric UNC	8 x 1.25 5/16 x 18
RYOBI	CHINA	RCT 31500 : RTC 2200	36 X 11	UNC	¼ x 20
RYOBI TIPAN (New Model)	CHINA	RSS 3100AF UNABLE TO FIT !!		CAN’T	FIT !!!
RYOBI Weed Hornet	U.S.A.	Quick Fit Model Sleeve NOT needed		UNC	7/16 x 20
SACHS DOLMAR	U.S.A.	LT16 210		UNF	3/8 x 24
DOLMAR	JAPAN	LT250		Metric	8 x 1.25
SHINDAIWA SHINDAWA	JAPAN	SAB T 230 (Multi –fit shaft) LH rotation Home Pro F22		CAN’T FIT Metric	8 x 1.25
STIHL	EUROPE	FS 45 FS 38	38 X 10.5	Metric	8 x 1.25
STIHL‘	EUROPE	FS 75 FS 36	38 X 12.5	Metric	12 x 1.75
STIHL	EUROPE	FS 55	38 X 12.5	Metric	10 x 1.00
STIHL	EUROPE	FS56 : FS48 ( Anti-Clockwise rotation)			Try CHAMP Jnr 2
STIHL Electric	EUROPE	FE55	38 X 12.5	Metric	12 x 1.75
STIHL Cordless Battery	EUROPE	FSA 65 FSA 75	34 X 10.5	Metric	8 x 1.25
SNAPPER	U.S.A.	14CST		UNF	3/8 x 24
SOLO	EUROPE	117 118		Metric	10 x 1.25
TALON	CHINA	Electric Model AT 2307A	38 X 11	UNC	¼ x 20
TALON	CHINA	Petrol	38 x 11	UNC	¼ x 20
TANAKA	JAPAN	TBC2800 TBC2251		Metric	8 x 1.25
	JAPAN	TBC 4500		Metric	10 x 1.25
TORO	U.S.A.	TC350 400 650		UNF	5/16 x 24
WEEDEATER SKIL	U.S.A.	1500 1600 1700 3500 GTl 15 17 18 18B 500 570 567 599 600 607 608 609		UNF UNF	3/8 x 24 7/16 x 20
WEEDWACKER	U.S.A.	XR20 30 50 70 80 85 TX100 115 120 125 125B 130A XT20 50 85 YP Series YP145		UNF	3/8 x 24
