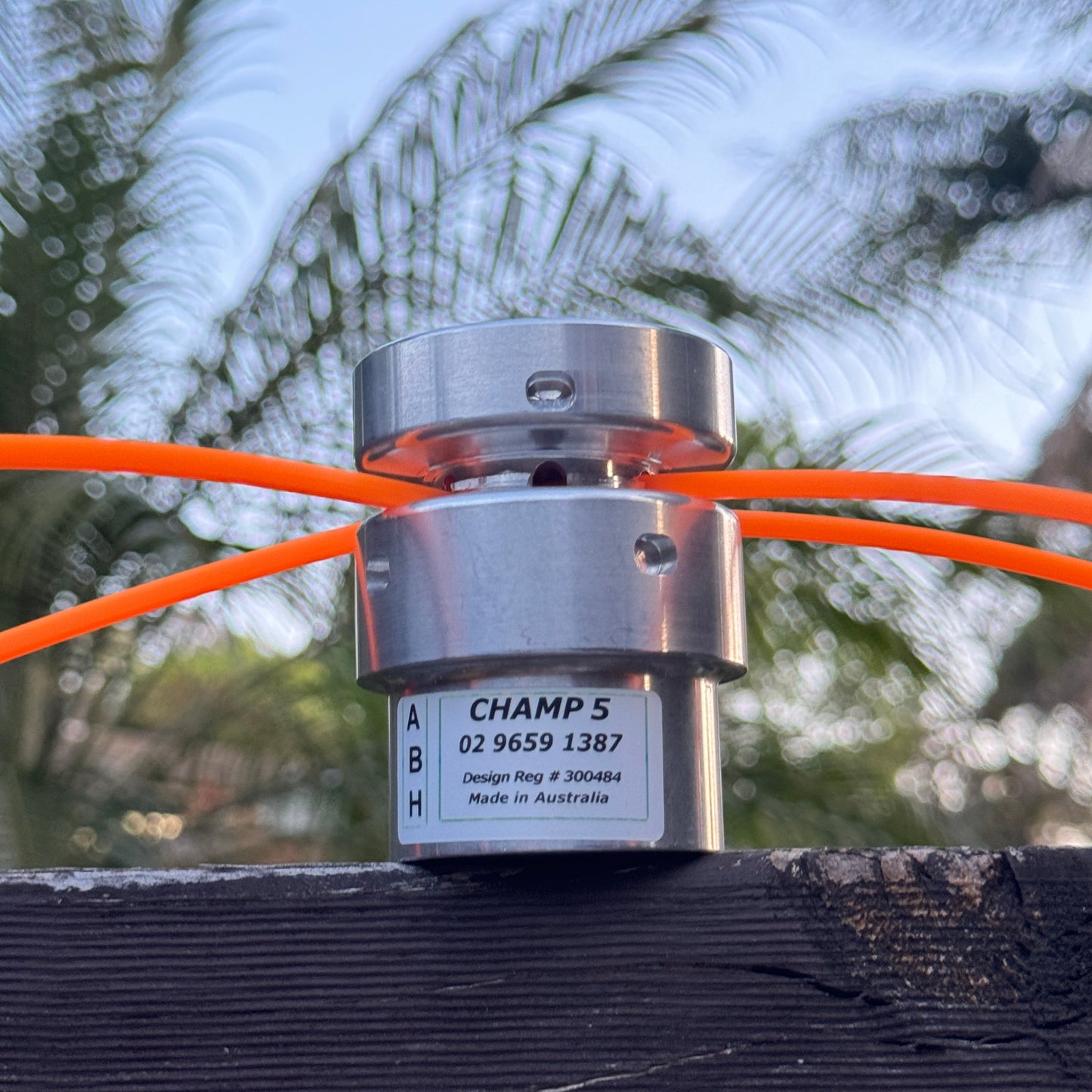

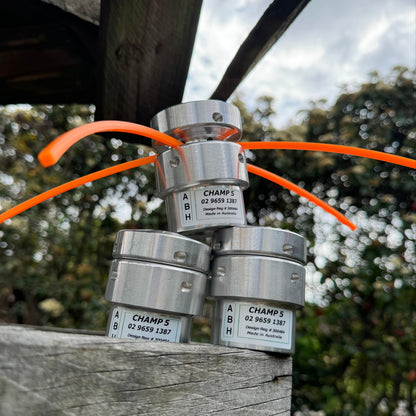

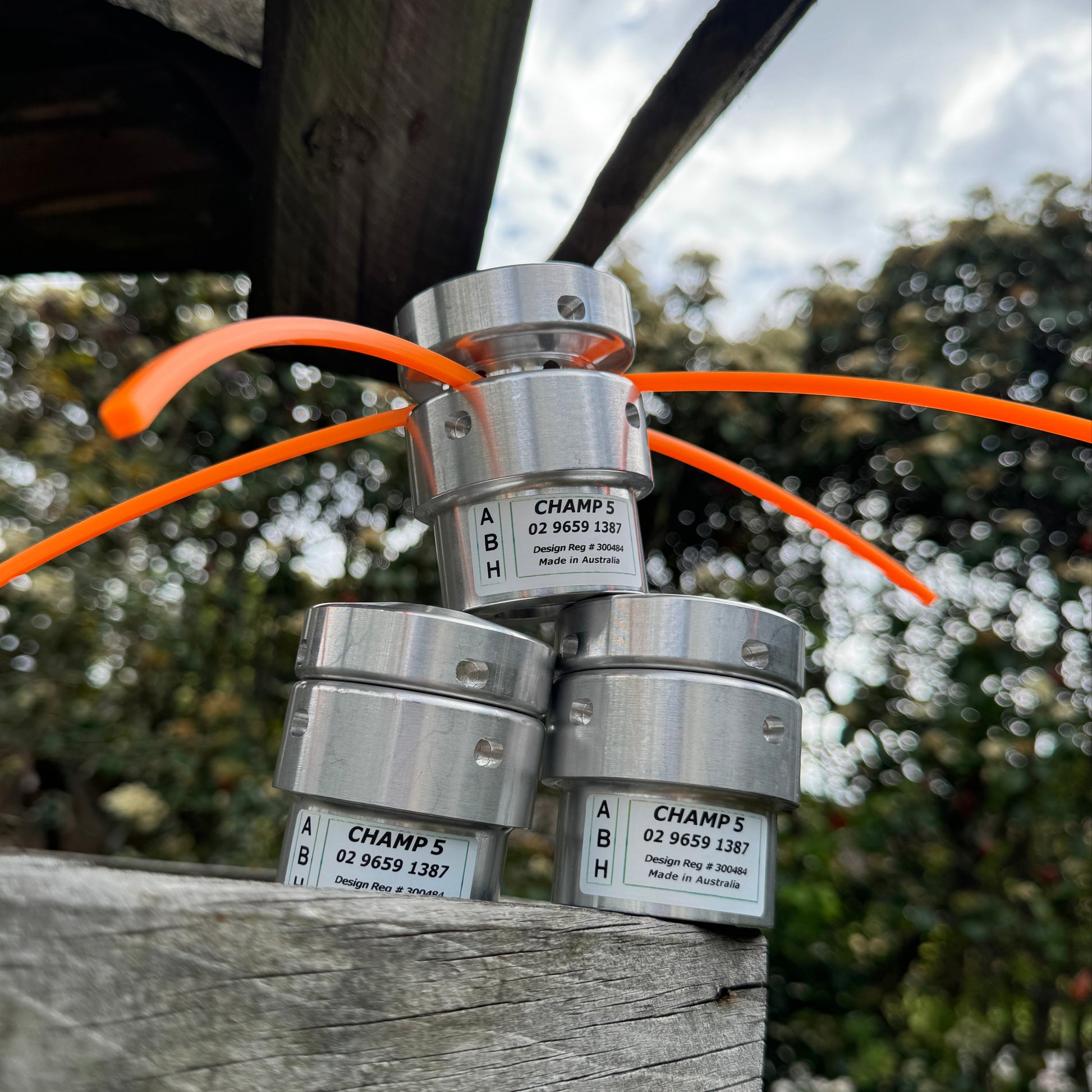

.The CHAMP 5

COMMERCIAL / PROFESSIONAL / LARGE AREA USE
Replacement Head For Straight Shaft Machines: NOW Fitted with “c” spanner slots.
400 COUNCILS: R.T.A, National Parks & 1,000’s of Acreage Owners
Can’t be wrong!!
KIT INCLUDES “C” Spanner

USES: Professional / Commercial Heavy Duty Large Area use

The CHAMP 5 is the preferred replacement Head for Councils: Govt Agencies : National Parks RTA + Owners of Large Acreages Exceptional Heavy Duty performance Fits ALL Straight Shaft machines. The CHAMP (Range Variants) has been on the Market for 12 years


FEATURES
Amazing performance non-stop cutting for hours!!
Very Heavy Duty
ALL METAL 2 piece construction NO moving parts
Cutting Cylinder has 6 line slots
Uses 1- 2- 3 Lines = 2- 4- 6 Cutters
Base is attached using Original LH Retaining Nut
Base accepts a 34mm Socket Spanner
On Machine line Loading & Reloading with our easy to use “Cutting Cylinder Line Loading System”
C Spanner provided for easy line changing
Wear part is a Spare part


SPECIFICATIONS
Weight : 363 grams
Material Marine Grade Aluminium
Base Diameter : Outside 60 mm : Inside 34 mm
Overall Height : 72 mm
Cutting Line : 3 x SuperCut Heavy 3.6mm = 6 cutters
Cutting Cylinder - 6 Line slots
Components : Base & Cutting Cylinder (wear part)
Spare Parts : Cutting Cylinder & C Spanner
NEW “box / square” thread is “loose fit” to resist heat expansion after extended use
Equipped with 8 C Spanner slots
C spanner included
DESIGNED & MADE IN AUSTRALIA
